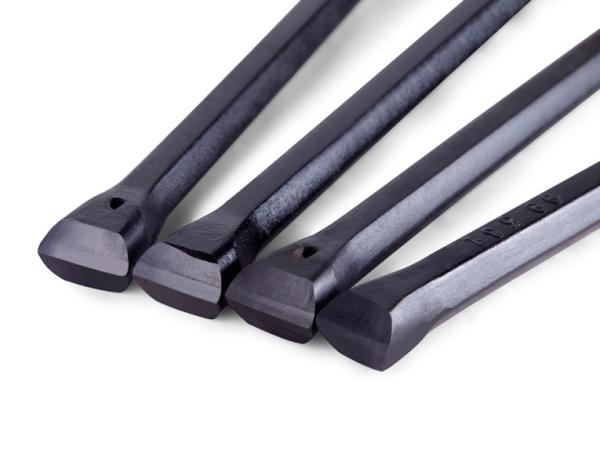

    400mm 800mm Integral Drill Steel H19 Shank 22 x 108mm For Hand Held Rock Drill

    Ask Lasest Price
    Brand Name : SUVEC
    Model Number : integral drill steel
    Certification : ISO
    Price : negotiable
    Supply Ability : 30000 pieces/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    400mm 800mm Integral Drill Steel H19 Shank 22 x 108mm For Hand Held Rock Drill

    400mm 800mm Integral Drill Steel H19 Shank 22 x 108mm For Hand Held Rock Drill

    Integral drill steel, another name called integral drill rod, which is used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole. Shank H22*108mm, H19*108mm, and standard hex. Bit diameters range 20-42mm, different lengths are available from 400mm to 6000mm usually.
    It can reduces the expense of impact energy, improves the drilling speed and efficience, also it can be used for drilling bore hole diameter form 19mm to 41mm usually.
    Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.

    Product Name:hard rock Mining Integral drill steel,Integral drill rod
    TypesTapered drill rods, Integral drill rods, Plug hole rods
    Application::Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
    Material:High quality carbide and high quality steel
    We can produce as your request of carbide size, different length of drill rods.
    Types of drill rodsSpecificationsLength (mm)ShankWeight (kg)
    Tapered drill rodsTaper Angle: 7, 11, 12 degree400mm to 8000mmHex22mm*108mm Hex25mm*159mm Hex19mm*108mm1.7 - 24.9
    Integral drill steelBit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm400mm to 4800mm3 – 15.4
    Plug hole rodsChisel bit diameter: 17mm, 20mm, 22mm150mm to 710mm0.6 - 2.9


    The process procedure is listed below:
    1. sawing the steel rod and steel pipe
    2. drilling the steel rod
    3. CNC lathing the hollow steel rod to make screw thread for head and end parts of rod
    4. makeing flat parts for head part
    5. welding the two parts with steel pipe
    6. lathing the redundant steel welding ring
    7. painting and packing

    Why choose our drill steels?
    1. Threaded rock drill rod connect with button bits perfectly for drilling holes
    2. Stable and mature welding technology ensure high quality of bits
    3. Accurate dimension of taper degree perfectly matches the button bits
    4. work reliable and very cost-effective
    5. Rod bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

    6. Rock drilling tools are exported throughout the world. Main market: Norway, USA,Canada,Brazil, Uganda,UAE, Philippines, Thailand etc.
    Packing details : Wooden case and steel bundle.

    Keywords: drill rod | la barra de taladro | broca Rod | forer tige | Bohrgestänge | çubuk matkap | drill rod hard rock Mining Integral drill steel,Integral drill rod
    We specialize in rock drilling tools, including rock drill bits,tapered drill tools,threaded drill tools,Down the hole drilling tools ( DTH ), which are widely used in mining , quarrying , well drilling and construction . All these products are compatible with other world world leading brands such as Atlas Copco , Sandvik , Mitsubishi and Boart Longyear.
    Test is the best way to find suitable rock drilling tools, for samples please Email drillbit@qq.com
